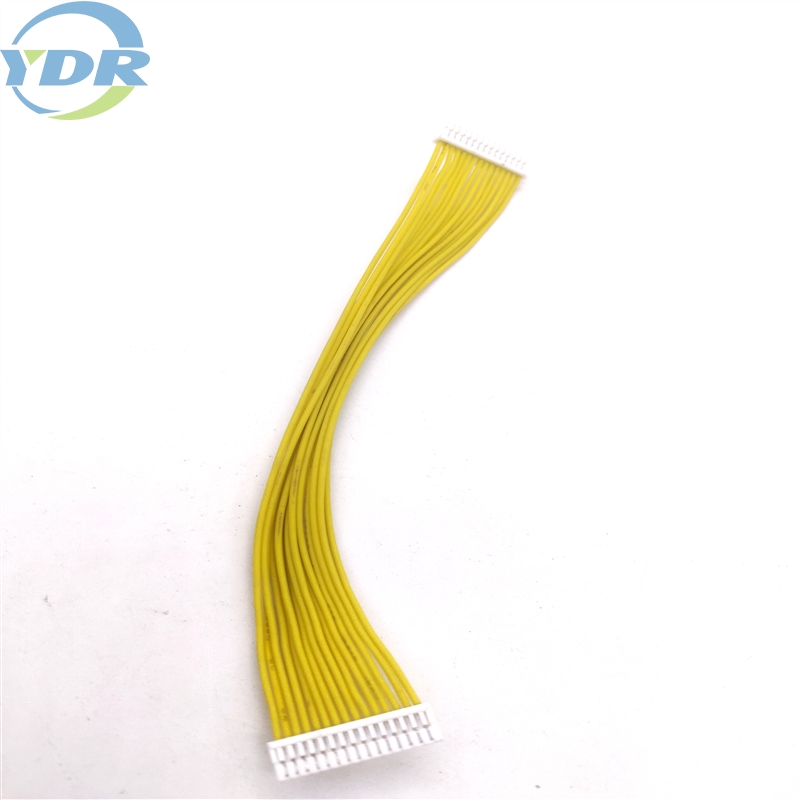

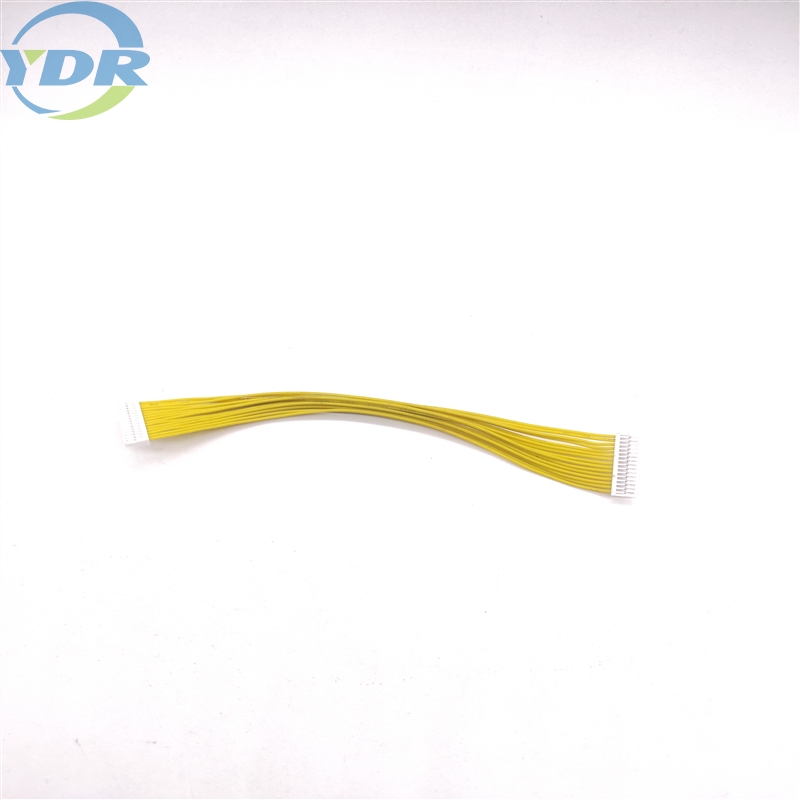

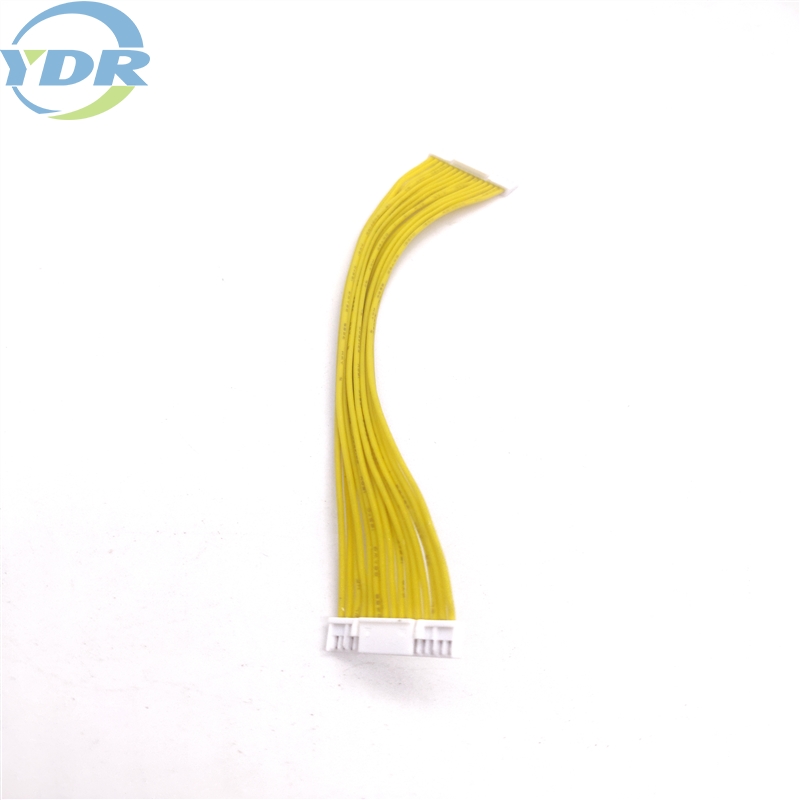

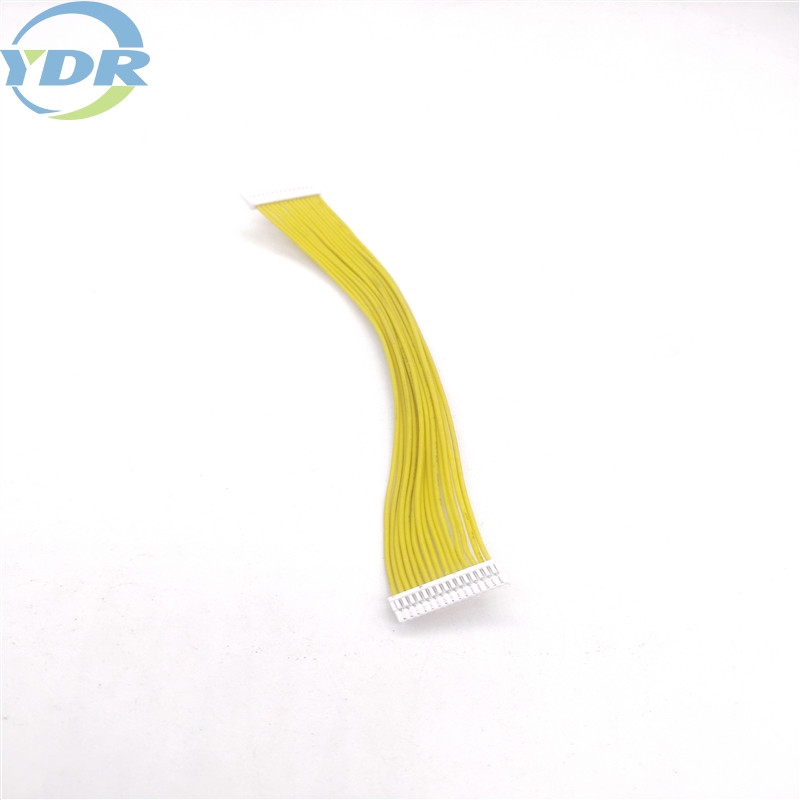

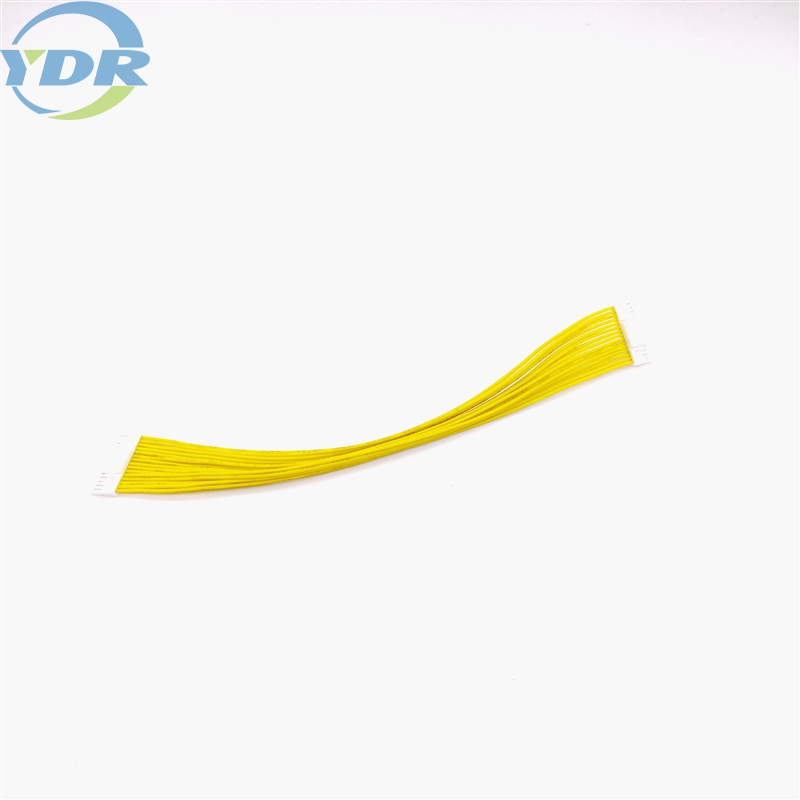

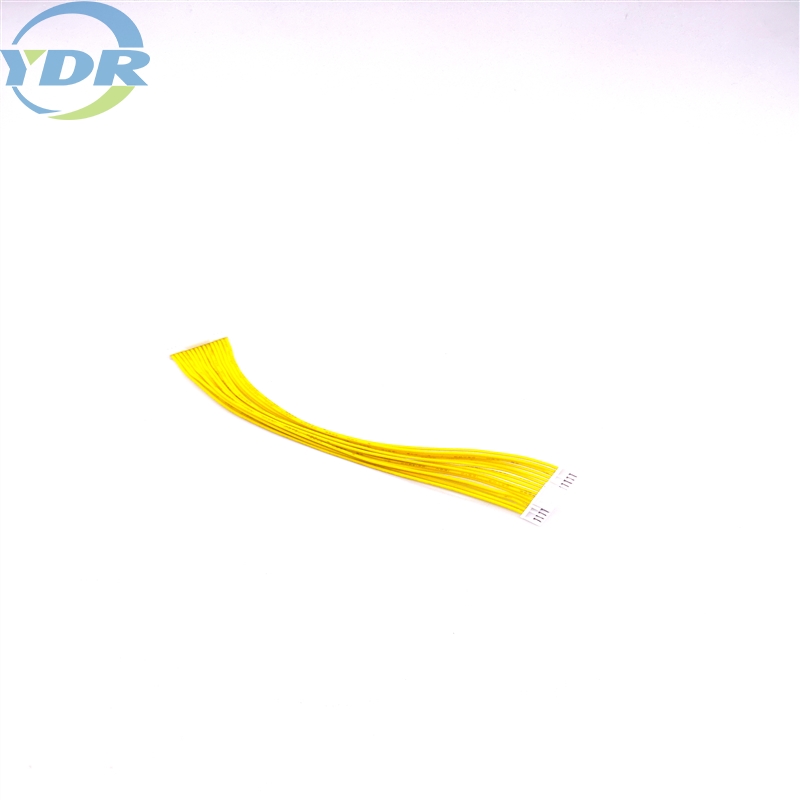

Internal Machine Wire Harness PCB Board Cable

Specification: GH1.25 terminal wire

Wire conductor: tinned copper/bare copper

Wire range: 32AWG-26AWG

Terminal: phosphor copper

Rubber shell material: PA66 nylon

Characteristics: High temperature resistance, acid resistance, alkali resistance, oil resistance, flame retardancy, moisture resistance, low frequency.

The GH1.25 terminal wire is made of phosphorous copper, which has good conductivity. The adhesive shell of the GH1.25 terminal wire is made of PA66 nylon material, which has good plasticity. The core of the wire is made of multiple tinned copper wires, thus having good softness.

The GH1.25 terminal wire can withstand high temperatures of 80 degrees Celsius and withstand voltage of up to 300V, making it an ideal wire for connecting many equipment components.

GH1.25 terminal wire is suitable for relatively thin wire due to the influence of terminal spacing, and the commonly used specification is 30AWG-28AWG wire. The wire specifications can be customized according to customer requirements for UL1571 electronic wires, UL1061 electronic wires, UL10064 Teflon wires, UL10368 halogen-free wires, UL3302 halogen-free wires, and special specifications of electronic wires. GH1.25 terminal wires can be customized with any P number, and all materials meet strict production requirements and quality assurance.
