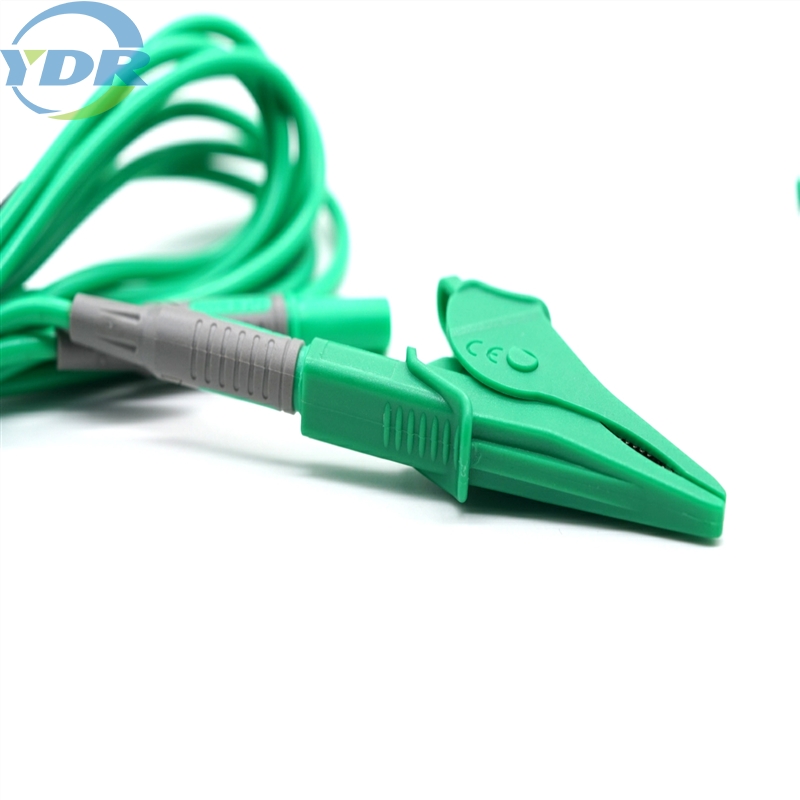

1000V Crocodile Connectors Cable 1000V 10A Crocodile Clamp Cable Alligator Clip Wire Harness For Universal Meter: Alligator clip are generally only used for voltage measurement occasions, under the condition of the measurement requirement is not high also temporary used to measure current, when the current is measured with a crocodile clip, to pay special attention to the size of the measuring current, because the crocodile clamp mouth is indented, and cannot be tested with mesh, this current will be affected, so the alligator clip mouth due to the different object, The same crocodile clamp current size is not the same.
Product Name | Alligator Clip Cable |
Brand | YDR |
Service | OEM ODM |
Wire Gauge | 1mm² OD 3.8mm/4mm |
Voltage/Current |
1000V 10A-15A |
Typical: A 10mm open alligator clip on a cylinder (e.g., a screw) has about 3 times less overcurrent capacity than one on a cluster of test wires. It is about 10A on the clamping cylinder and 40A on the clamping line cluster, so the above crocodile clamping over-current capacity is set according to the nominal 10A (full contact between the meshing port and the tested product).
Note: The test clamp overcurrent capacity has a great relationship with the meshing condition between the clamped objects, * is the ideal state data.
